TAMAYA Echo-Sounder TDM9000A

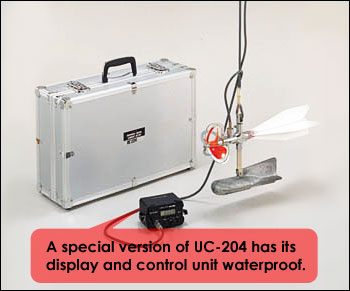

UC-204 A special version of UC-204 has its display and control unit waterproof.

The UC-204 is the more versatile type of current meters used in rivers, oceans, industrial drainage pipes, irrigation systems, and many other fields.

The exact spiral propeller and precise axis with jeweled bearings assure the non-distorted measurement of the current speed.

There is also a special version of UC-204 with its display and control unit waterproof and glowing at night with backlight.

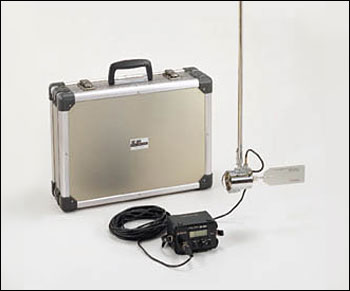

UC-304

The UC-304 is designed more for accurate measurement of low current velocities and permits measurement of the velocity of any slow current with a vertical depth of 6cm.

Features
Compact and Lightweight
The indicator weighs only 0.45 kgs and can be easily held and handled by one person.
Magnetic Sensor
The non-contacting magnetic pulse generator minimizes the friction in the propeller rotation system, and improves the lifetime of the instrument which may have been used in saltwater.

Mode Selector
UC-204
Instantaneous Current Speed and
Mode 2. Average current speed per 2 seconds.
Mode 10. Average current speed per 10 seconds.
Mode 20. Average current speed per 20 seconds.
Mode 30. Average current speed per 30 seconds.
Mode 40. Average current speed per 40 seconds.

UC-304
Instantaneous Current Speed and
Mode 2. Average current speed per 2 seconds.
Mode 10. Average current speed per 10 seconds.
Mode 20. Average current speed per 20 seconds.
Mode 30. Average current speed per 30 seconds.
Mode 40. Average current speed per 40 seconds.


Specifications
Model UC-204 UC-304
Measuring range 0.080m/sec.-3.500m/sec. 0.030m/sec.-1.600m/sec.
Reading scale 0.001m/sec.
Accuracy }3% or }1cm
Display LCD, 4 digits
Water resistance Max. 20m in depth
Power supply AA type ~ 2pcs. DC3V 20mA
Operating time : more than 40 hours
Bearing Jeweled bearings
Dimensions and weight Sensor 12x12x43cm 1.4kgs.
Indicator 11x6x8cm 0.45kgs.
Sensor 5x6x22cm 0.6kgs.
Indicator 11x6x8cm 0.45kgs.
Carrying case Aluminum, 51x32x16cm 4.5kgs. Aluminum, 43x31x11cm 3.5kgs.
Standard accessories Cable 10m long 1pc.
Weight 4.2kgs. 1pc.
Allen key  1pc.
Plastic case for indicator 1pc.
Cable 10m long 1pc.
Measuring rod 1-meter long 1pc.
Plastic case for indicator 1pc.
Optional accessories Extension rod with a ferrule flange;
1-meter long 2pcs. (Max. 2m)
-
