TAMAYA DIGITIZING AREA-LINE METER PLANIX 10S marble

main features
Switching by Lines
Point/Stream (continuous) mode key allows conversion between point mode measurement for plotting points on straight lines and stream mode for tracing curves on curved lines.

More Compact and Lightweight
The weight is only 630g, and the compact design allows for easier measurement.

More Colorful Measurement
3 colors--, metallic gray, pastel blue, and pastel red.

Total and Average As You Go
By measuring the same diagram more than once, a more accurate average or cumulative measurement for large scale diagrams can easily be done with these special keys.

Measurement of Reduced/Enlarged Scale and the Vertical Scale with Different Horizontal Scale
The “Marble” can also measure the area of a scaled plan.

Auto-Close Function
Automatically finishes measuring when it is returned to the starting point during measurement.

PLANIX 10S.pdf (734Kb)

You can obtain a free viewer by following this link

Plot key is now right next to the trace lens,
allowing you to operate the new Marble easily,
with one hand.

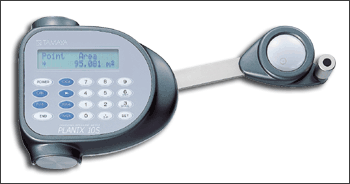

Metallic Grey

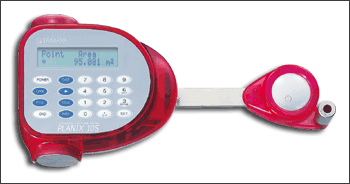

Pastel Red

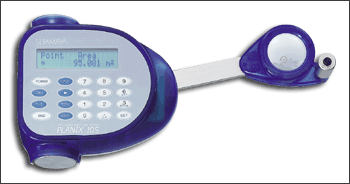

Pastel Blue

Measuring functions	Area, line, and side length(s)
Measuring scales	mm, cm, m, km, in, ft, acre/yd
Measuring range	300mm x 10m
Measuring accuracy	± 0.1% (for an area of 100 x 100mm)
Display	LCD 16 digits on 2 lines
Minimum line reading	0.05mm
Power	Internal nickel metal hydride battery or AC charger/adaptor
Battery	20 hours use
Charging time	15 hours
Accessories	Storage case, AC charger/adaptor
Dimensions	250(L) x 110(W) x 40(H)mm
Weight	630g (without case)

△=Option	PLANIX 5	PLANIX 6	PLANIX 7	PLANIX　10S "Marble"	PLANIX EX	PLANIX EX-L
X, Y coordinates	*	*	*	*	○	○
External outputs	*	*	*	*	○	○
Area	○	○	○	○	○	○
Side length	*	*	*	○	○	○
Line length	*	*	*	○	○	○
Radius	*	*	*	*	○	○
Center point	*	*	*	*	○	○
Triangle (base length, height and area)	*	*	*	*	○	○
Angle (side length and angle)	*	*	*	*	○	○
Scale: key input	*	*	○	○	○	○
Scale: PLOT-real measurement correction	*	*	*	○	○	○
Measuring area for differing scale of X, Y	*	*	Area only	Area only	○	○
Sum and average measurement	○	○	○	○	○	○
Decimal point set-up	*	*	*	○	○	○
Auto power off	○	○	○	○	○	○
Calculation	*	*	*	*	○	○
Display	dot LCD 8 digits x 1 line			dot LCD 16 digits x 2 lines	dot LCD 17 digits x 3 lines
Measuring range	300mm x 300mm	300mm x 3m		300mm x 10m	380mm x 10m	450mm x 10m
Minimum line reading	± 0.1cm			± 0.05mm
Accuracy	± 0.2%			± 0.1%
Auto close function	*	*	*	○	○	○
Automatic numbering	*	*	*	*	△	△
Printer	*	*	*	*	△	△
RS-232C interface cable	*	*	*	*	△	△
