TAMAYA Digitizing Area-Line Meters PLANIX EX and PLANIX EX-L

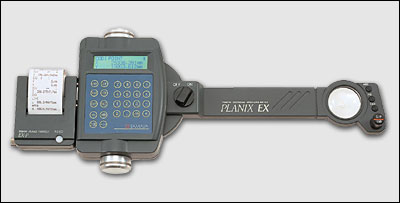

PLANIX EX

The PLANIX EX not only allows you to quickly and accurately measure areas,
but it also allows you to calculate lengths, coordinates, radii, and angles.

PLANIX EX-L is also available for a wider range of 450mm x 10m.

Download Brochure
PLANIX 10S PLANIX EX / PLANIX 5/6/7 (3.65M)

You can obtain a free viewer by following this link

Adobe Acrobat Reader


Fanctions
Functions PLANIX EX PLANIX EX-L
X, Y coordinate Yes Yes
Side length Yes Yes
Line Yes Yes
Area Yes Yes
Center point Yes Yes
Radius Yes Yes
Triangle Yes Yes
Angle Yes Yes
RS232C cable Yes(Option) Yes(Option)
Printer Yes(Option) Yes(Option)

Features
Easy Measurement
The automatic closing function, which automatically finishes measurement when the trace point is returned to the starting point, makes measurement easier.

Wide Variety of Measurement Units
The PLANIX EX and EX-L are not only equipped with metric units (mm, cm, m, and km) but also provide the user with such units as in., ft., yd., mi., and acres, as well as other user-defined units.

Two Modes Are Better Than One
With the Point mode, the user can more easily and more quickly obtain areas and lengths of diagrams with straight lines.
The Stream mode should be used for tracing curves on curved lines.

RS-232C interface Cable
 The RS-232C interface cable connects PLANIX EX or PLANIX EX-L to the computer.
Any measurement value can be sent from the PLANIX to the computer through this cable.
It comes with a free data-collecting software.
Thermal Printer There is an optional thermal printer for an immediate hardcopy record of your measurements.

Specifications
Power Internal NiCd or AC adaptor
Operating time 40 hours after 15 hours recharge
Display LCD, 17 digits on 3 lines
Measuring range EX 380 mm x 10 m (14 in. x 32.5 ft.)
EX-L 450 mm x 10 m (17 in. x 32.5 ft.)
Accuracy +/- 0.1% (for an area of 100 x 100mmt)
Minimum line reading 0.05 mm
Dimensions EX 350 x 43 x 165 mm
EX-L 400 x 43 x 165 mm
Carrying case EX 365 x 65 x 195 mm
EX-L 465 x 70 x 245 mm
Weight EX Approx. 1 kg.
EX-L Approx. 1.4 kg.

Tamaya PLANIX series Comparison Table
△=Option
PLANIX 5
PLANIX 6
PLANIX 7
PLANIX　10S "Marble"
PLANIX
EX
PLANIX EX-L
X, Y coordinates * * * * ○ ○
External outputs * * * * ○ ○
Area ○ ○ ○ ○ ○ ○
Side length * * * ○ ○ ○
Line length * * * ○ ○ ○
Radius * * * * ○ ○
Center point * * * * ○ ○
Triangle (base length, height and area) * * * * ○ ○
Angle (side length and angle) * * * * ○ ○
Scale: key input * * ○ ○ ○ ○
Scale: PLOT-real measurement correction * * * ○ ○ ○
Measuring area for differing scale of X, Y * * Area only Area only ○ ○
Sum and average measurement ○ ○ ○ ○ ○ ○
Decimal point set-up * * * ○ ○ ○
Auto power off ○ ○ ○ ○ ○ ○
Calculation * * * * ○ ○
Display dot LCD 8 digits x 1 line dot LCD  16 digits x 2 lines dot LCD  17 digits x 3 lines
Measuring range 300mm x 300mm 300mm x 3m 300mm x 10m 380mm x 10m 450mm x 10m
Minimum line reading ± 0.1cm ± 0.05mm
Accuracy ± 0.2% ± 0.1%
Auto close function * * * ○ ○ ○
Automatic numbering * * * * △ △
Printer * * * * △ △
RS-232C interface cable * * * * △ △
